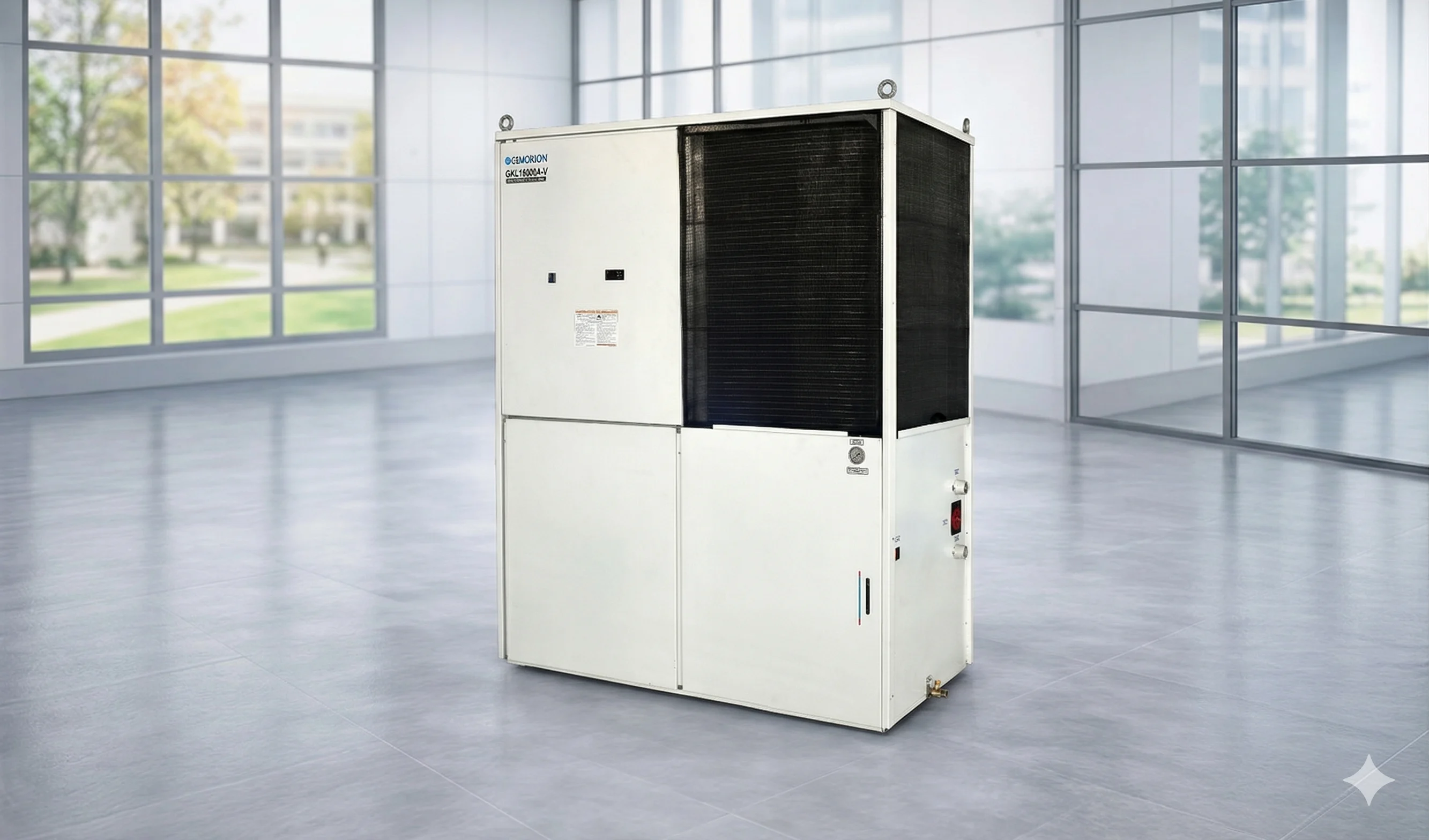

Heavy Duty Precision Chillers

Air cooled chillers with built in water tank. The performance of chillers depends on effective cooling. GKL series air cooled chillers effectively utilise Japanese technology to deliver the desired results. Heavy Duty Precision Chillers are advanced cooling systems engineered to maintain precise temperature levels in demanding industrial environments. These high-powered chillers come up with in-built water tank, which saves space and energy.

The GKL series chillers with built-in water tanks, pump already built into the unit, getting rid of cumbersome on-site piping installation usually required for closed loop systems. The unique features of GKL series have earned an unassailable lead for Gem ORION as an innovative air chiller manufacturer in India. This GKL series industrial air cooled chillers come up with multitude of benefits including wide operating range, efficient temperature control and so on.

Get a Quote Contact Us Download Catalogue

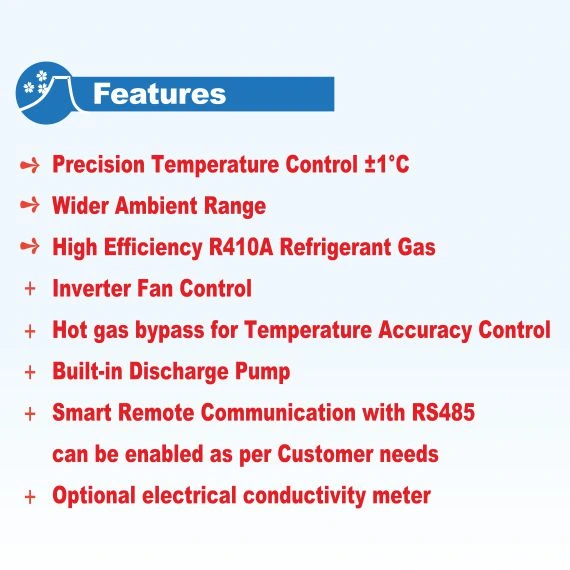

Features

Precise control of temperature (within ±1°C from set point).
Environment friendly, energy efficient refrigerant - r410a (no phase out as per Montreal Protocol).
Larger Operating range (from 10 to 30°C).
Wider ambient temperature (from 10 to 45°C).
In-built water tank made of SS304 material.
In-built high pressure pumps made of SS304 Impeller & SS body. Pumps can operate at as high as 6 bar / 60 m head.
Brazed plate heat exchangers with SS316 plates (higher thickness for longer durability).
Inverter Driven Fan motors to ensure uniform performance across seasons.
Chillers built on Casters for ease of mobility.
Visible water level from front.
Pressure gauges to indicate refrigerant pressure & water pressure.
Hermetically Sealed Scroll compressors.
Condensers to withstand very high operating pressures.
IP rated fan motors.
Dust filter mesh to ensure less interruption to operation & ease of maintenance.
Remote On-off as a standard feature.
Potential free contacts for chiller status as standard feature.
Optional RS485 connectivity.
Optional Cyclic control for Energy saving mode operation.

Our chillers are designed with a large water tank for convenient operation. We have adopted an immersion pump design, which goes a long way to alleviate bigger troubles such as water leaks, water dripping and so on. As a quality-conscious air cooled water chiller suppliers, we have ensured that the primary components are identical to those used in our Japanese-manufactured chillers.

ORION has shipped over 200,000 chillers to satisfied customers not only in Japan, but throughout the world. As a quality-conscious air cooled chiller suppliers, Gem ORION follows the footsteps of ORION in delivering chillers to our discerned customers on time – every time.

Our chillers are renowned as complete and heavy duty industrial chillers. Hence, we have ensured that GKL Series Chillers come up with built-in water tank as well as pump, so that you do not have to deal with troublesome wiring or piping. This, in turn, ensures better production capabilities for you.

HB (Hot Gas Bypass) control gives control precision to ± 1.0°C.

ITEM MODEL Units GKL3750A-V GKL5500A-V GKL7500A-V GKL11000A-V GKL15000A-V GKL18000A-V GKL22000A-V GKL30000A-V
Cooling Capacity *1 kW 12 20 25 35 48 57 74 96
External Dimensions (H x D x W) mm 1684x905x805 1825x988x885 1646x800x1340 2020x919x1600 2124x915x1601 2190x1300x2010 2190x1300x2200
Unit Mass (dry weight) kg Approx. 240 Approx. 260 Approx. 320 Approx. 475 Approx. 480 Approx. 560 Approx. 1050 Approx. 1420
Chilled Water Operable Ambient Temp. Range °C 5 to 45
Operable Liquid Temp. Range °C 10 to 30
Control Precision *4 ±1.0°C
Operating Water Pressure MPa 0.25~0.50 0.35~0.55 0.35~0.55 0.35~0.55 0.47~0.7
Operating Flow Rate L/min 30~70 24~110 24~110 160~250 100~360
Inlet and Outlet Port Size BSP1 BSP11/4 BSP2
Power Specifications Power Source *2 V(Hz) 3 Phase.400 ± 5%.50
Power Consumption *1 kW 4.8 8.1 10.8 14.2 17.5 23.65 29.7 37.2
Electric Current *1 A 9.4 16.28 25.8 34.15 49.1 59.9 74.6 97.4
Power Capacity *3 kVA 6.5 11.27 17.8 23.6 34 41.5 51.6 67.48
Equipment Details Compressor Scroll type
Condensor Finned tube type, Forced air cooling
Operation Control Method Hot gas bypass
Evaporator Construction / Material Plate type/SUS316(with copper brazing)
Discharge Pump Construction Multistage centrifugal pump
Water Tank Capacity L Approx. 95 Approx. 115 Approx. 140 Approx. 220 Approx. 250 Approx. 320
Refrigerant R-407C R - 410A

*Subject to change With design modification

*1. Cold water temperature 20°C, Room temperature 38°C.
   Cooling capacity is at least 95% of listed figures.

* 2. Voltage imbalance should be within ±2%.

* 3. The figure noted is when operating at the highest capacity in the normal operating range.

* 4. Continuous load fluctuation within ±10% with stable ambient temp and power supply etc.
